Single-Pillar vs. Double-Pillar: A Comparison of the Pros and Cons of Two Solar Carport Racking Solutions

    Let start with one post way. This kind of solar carport racking put system have just one post between every two car spots, most time put on the line that split the spots. For a driver, less posts mean no block view and more easy get in and out. On stuff use, one post systems need about half the posts number than two post systems. But, need know that less columns not always mean less total steel use. Because one column solar carport racking have bigger cantilever span, the main roof beams must be built taller and thicker; if not, too much bend could make small cracks in solar panels. The good things of this design are open look, no block ground space, and easy to clean cars. The bad things are also clear: the base of one column must take bigger bending force, ask more from ground condition. Also, in high wind places, the side steadiness of one column solar carport racking is worse than two column designs, need more braces or bigger column sizes.

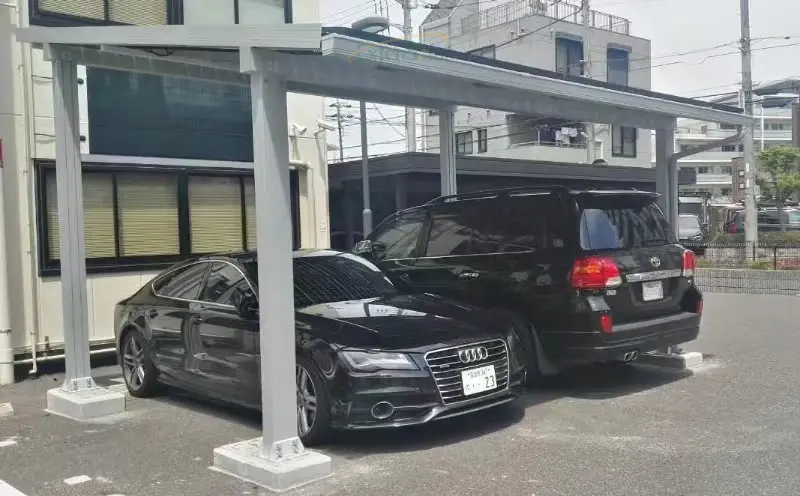

    Now think about the two-column design. This kind of solar carport racking have one column on each side of every parking spot, making a portal frame. The two columns take the up and down loads together, so each column get much less bend force than a single-column design. The good part is the structure has high backup. Even if the join bolts on one column get loose, the other three can still give short help. Two-column solar carport racking are easier to make level when putting them, because four-point support is way more steady than two-point support. For places with big snow loads or fast winds, the two-column design is the safer pick. The bad parts are mostly two. First, with twice the columns, the driver's view get blocked. When backing into a parking spot, drivers must give extra care to the space between the two columns. Second, the number of bases double; if ground conditions are bad, the work for drilling and pouring concrete will go up a lot. But the size of each base for two-column solar carport racking can be made smaller, as the load is spread more even across each base.

    From cost side, the end not clear. Many think two-post systems must cost more, but real price depend on some things. For normal parking spots, if wind not go over 25 meters per second, steel use of one-post solar carport racking is often 8% to 12% less than two-post system. But, when base need go into rock or need pile base, the cost of big deep holes for one-post systems go up a lot. Another thing people miss is work time for putting up. Two-post systems have more parts and bolt joins, so on-site build time is 15% to 20% longer than one-post systems. Yet, two-post systems let more room for mistakes, so workers less likely mess up. For build teams doing carport job first time, two-post solar carport racking are really the less trouble pick.

    There be some diff in two designs for keep easy. Single-post solar carport racking need air lift tool for fix cause parts put at middle. Double-post design give more work space, let some fix jobs do from side stand. But double-post system have more joint and bolt, so more work for check. If you plan put charge station later, single-post thing make wire and pipe run easy—just put down the middle post. With double-post thing, you must think which post near the middle of park spot; if not, wire need go diagonal, make look bad.

    So, how you pick? Here three clear tips. First, put single-post solar carport racking first when space small and ground posts number must be low.
